Description

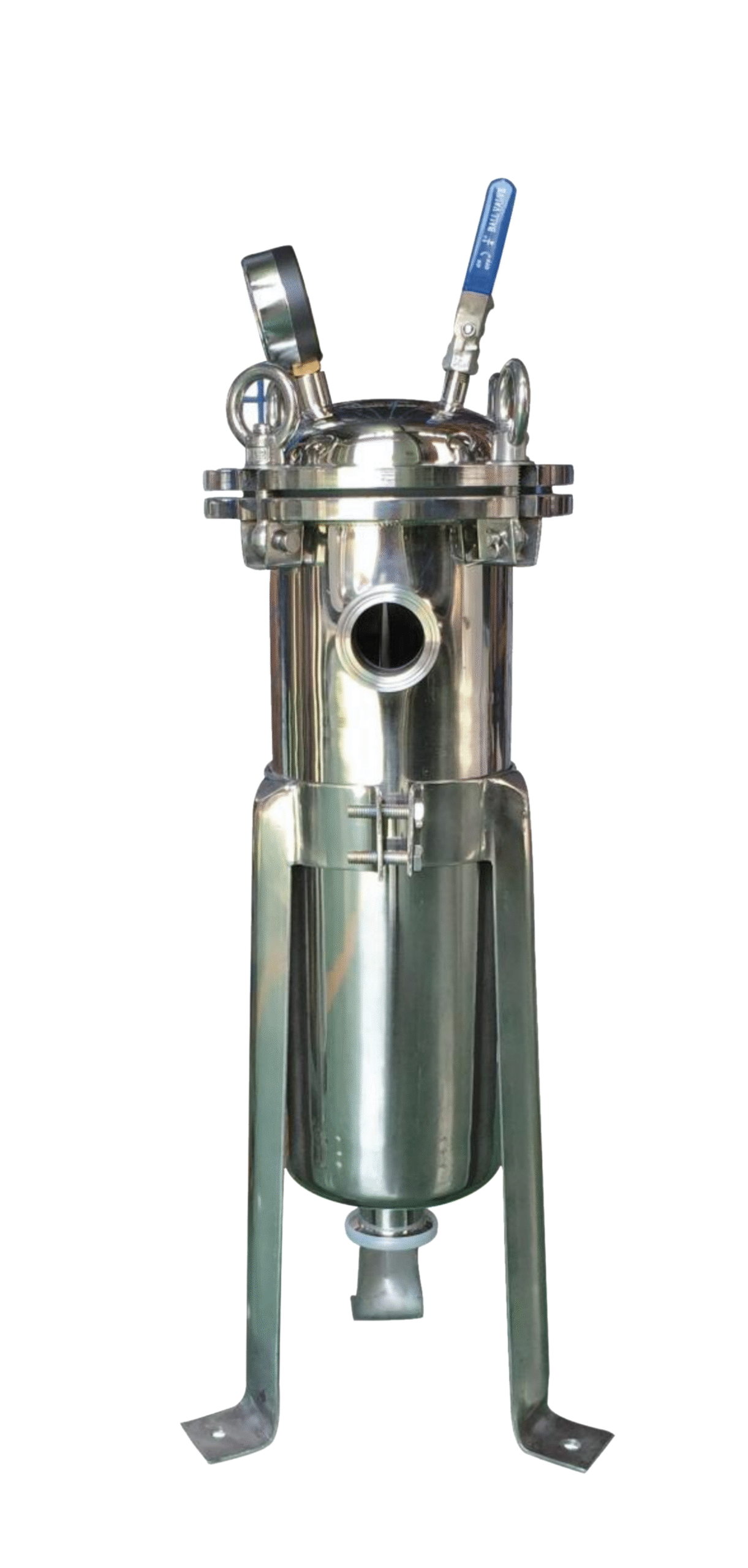

Stainless Steel Single Bag Filter

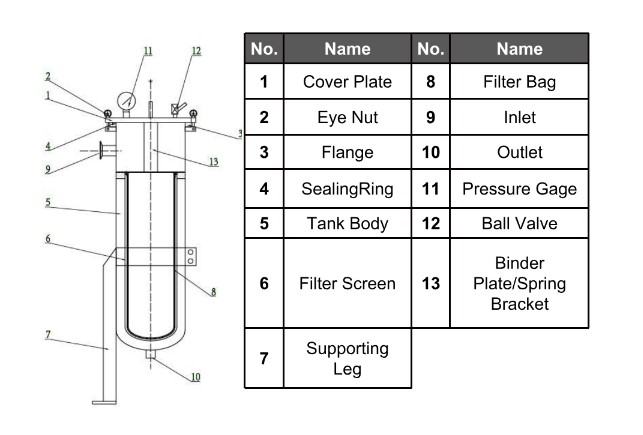

The stainless steel single bag filter is a pressure-type filtration device primarily composed of a filter housing, lid, quick-opening clamp mechanism, and stainless steel filter basket. The metal basket supports the filter bag inside the housing. Liquid enters through the inlet, passes through the filter bag, and exits through the outlet as clean, filtered fluid. Solids and impurities are retained inside the filter bag. The bag can be easily replaced or cleaned for repeated use. Installation is straightforward, and filtration requires virtually no consumable materials other than the bag itself.
Working Principle
Incoming liquid flows into the filter housing and passes through the filter bag, where solids are captured. The clean fluid then exits through the outlet, while contaminants remain in the bag for disposal or cleaning.
Features
- Constructed from 3 mm stainless steel for long service life and excellent corrosion resistance
- Compact footprint, easy installation, and simple operation
- Suitable for both coarse and fine filtration applications
- Large filtration area ensures high flow rates and high efficiency
- Easy filter bag replacement; bags can be cleaned and reused, reducing operating costs
- Bolt-sealed structure provides reliable sealing, high pressure resistance, and excellent leak prevention
Applications
This filter is widely used for precision filtration in industries such as:
- Paint and coatings
- Oils and lubricants
- Chemicals and petrochemicals
- Plating solutions
- Adhesives and hot-melt systems
- Inks, resins, and latex
- Industrial wastewater
- Food and beverage, including milk, syrup, and juice
